ROTEX SBAN jaw coupling with brake disk

(1 đánh giá)

Mã sản phẩm : KTR ROTEX SBAN

Xuất xứ : KTR-GERMANY

Bảo hành : According to manufacturer standards

The ROTEX jaw coupling with brake disk for disk for brake calipers. Usually the brake disk is positioned on the driven side having the highest mass moment of inertia. For combinations with brake disks please note the potentially resulting high circumferential speed - KTR recommends dynamic balancing with high-speed drives from 30 m/s.

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

Detail

Fields of application of our torsionally flexible jaw coupling ROTEX SBAN with brake disk (disk for brake caliper):
• This combination of coupling and brake disk is used wherever holding brakes or service brakes are required, e. g. on conveyor belts, generators, turbine drives, industrial fans, cranes, hoists, etc.
• Safety-relevant drives are preferably combined with ROTEX hubs made of steel/GJS. Applications with moderate demands can be combined with GJL hubs.

• Thanks to the elastomer (elastomer spider) between the coupling hubs of the jaw couplings shocks respectively torsional vibrations in the drive train are damped. The high temperature-resistant spider material T-PUR® (elastomer) is available in various degrees of hardness. The torsionally flexible ROTEX couplings are used in almost every range of general machinery and plant engineering.

• Properties of torsionally flexible jaw couplings:

ROTEX shaft couplings consist of two hubs (aluminium or steel) and a spider (elastomer ring / cam ring) made of T-PUR. The different degrees of hardness of the T-PUR-spider allow to adjust the level of damping and torsional stiffness of the elastomer coupling.

• ROTEX couplings require few mounting space and thus enable easy assembly/disassembly. The numerous types provide for maximum flexibility and meet with the different mounting requirements through various types of hubs.

• Function of torsionally flexible jaw couplings:

• Jaw couplings ensure torsional vibration-damping power transmission and absorb shocks generated by machines with irregular operation.
In contrast to flexible couplings the connecting elements of which are subjected to bending and therefore to earlier wear, the flexible teeth of ROTEX® couplings (elastomers) are subjected to compressive stress only. The benefit of the elastomer coupling thus is to resist significantly higher loads.

• The elastomers become deformed with load and high speeds. Sufficient expansion space must be provided.

• All sizes of ROTEX® elastomer couplings have a maximum torsion angle of 5°. They can be mounted both horizontally and vertically.

• Material of torsionally flexible jaw couplings:

• Our elastomer material T-PUR is resistant to higher temperatures and has a considerably longer service life than common polyurethanes. From a visual point of view we marked the T-Pur material by the colours orange (92 Shore A), purple (98 Shore A) and light green (64 Shore D).

• The previous polyurethane spiders in the colours yellow, red and natural white with green marking of teeth continue to be available on request.

Size parameter KTR ROTEX SBAN:

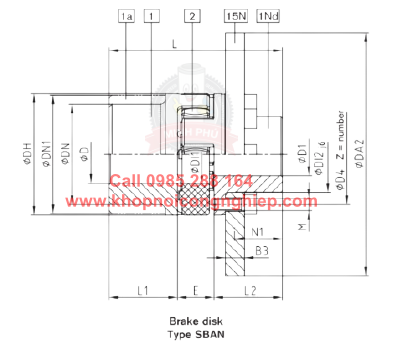

Type SBAN
Brake disk	ROTEX^®SBAN dimension “N”										Speed RPM [V] (30 m/s)
	38	42	48	55	65	75	90	100	110	125
200x12,5	31.25										2800
250x12,5	31.25	34.25	39.25								2240
315x16		32.5	37.5	44.5	53.5	61.5					1800
400x16			37.5	44.5	53.5	61.5	73.5	81.5	88.5		1400
500x16				44.5	53.5	61.5	73.5	81.5	88.5	104.5	1120
630x20					51.5	59.5	71.5	79.5	86.5	102.5	900
710x20					51.5	59.5	71.5	79.5	86.5	102.5	800
800x25							69	77	84	100	710
900x25									84	100	630

CATALOGUE THE COUPLING KTR ROTEX SBAN
