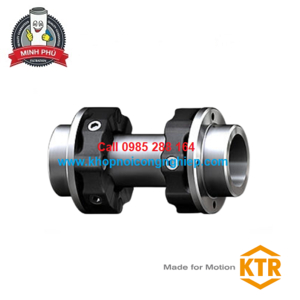

The coupling EVOLASTIC D2H highly flexible intermediate shaft

Mã sản phẩm : EVOLASTIC D2H

Xuất xứ : KTR-GERMANY

Bảo hành : According to manufacturer standards

• Type D2H is a highly flexible shaft coupling to be applied in main and auxiliary drives in mechanical and plant engineering. The intermediate shaft for bridging large shaft distances is available in customised lengths.

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

Detail

• Subject to its torsionally soft property it serves for insulating vibrations and acoustics in the drive train.
• In addition to transmitting the torque the coupling compensates for axial, radial and angular misalignment while absorbing overload flexibly.
• Type D2H can be screwed in axially and is available in ten sizes.
• The type is available in two materials - NR and on request EPDM.
• The maximum operating temperature of the element is 90 °C (NR) resp. 110 °C (EPDM).
• Both hubs are available as type 1.0 (feather keyway and setscrew), 3.0 (spline toothing) and 3.1 (spline/clamping hub N).

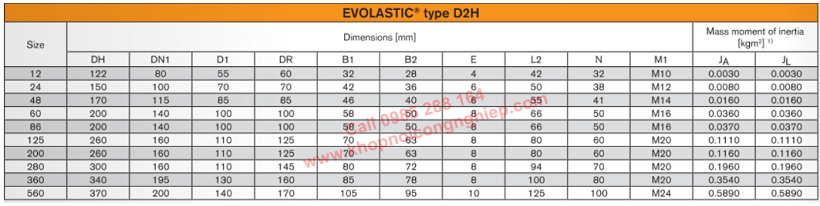

Size parameter KTR EVOLASTIC D2H:
