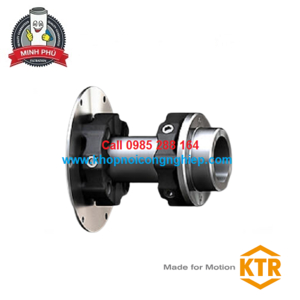

The coupling EVOLASTIC® DFH highly flexible spacer

Mã sản phẩm : EVOLASTIC DFH

Xuất xứ : KTR-GERMANY

Bảo hành : According to manufacturer standards

• DFH is a highly flexible intermediate shaft coupling for mounting on I. C.-engines and electric motors. This type combines the standard connection flange according to SAE-J620 with an intermediate shaft for bridging large shaft distances.

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

Detail

• Subject to its torsionally soft property it serves for insulating vibrations and acoustics in the drive train.
• In addition to transmitting the torque the coupling compensates for axial, radial and angular misalignment while absorbing overload flexibly.
• Type D2H can be screwed in axially and is available in ten sizes.
• The type is available in two materials - NR and on request EPDM.
• The maximum operating temperature of the element is 90 °C (NR) resp. 110 °C (EPDM).
• Both hubs are available as type 1.0 (feather keyway and setscrew), 3.0 (spline toothing) and 3.1 (spline/clamping hub N).

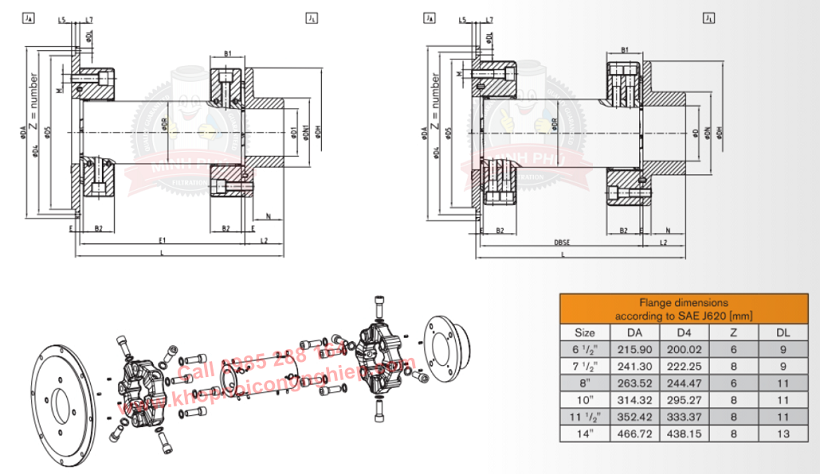

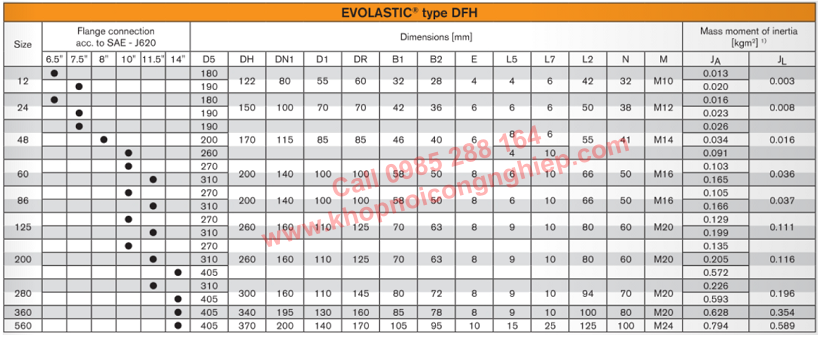

Size parameter KTR EVOLASTIC DFH:
