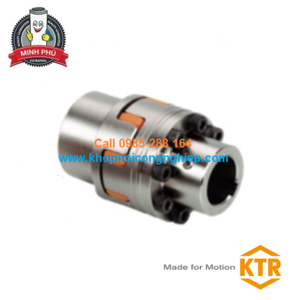

The coupling KTR ROTEX BFN coupling as a flange type

The coupling KTR ROTEX BFN coupling as a flange type

(1 đánh giá)

Mã sản phẩm : KTR ROTEX BFN

Xuất xứ : KTR-GERMANY

Bảo hành : According to manufacturer standards

ROTEX BFN is a torsionally flexible elastomer coupling as a flange type (flange coupling) and particularly suitable for applications in heavy engineering. The BFN design of the ROTEX elastomer coupling is characterized by the flange type allowing for radial assembly and disassembly of the shaft coupling or the elastomer without displacing the driving or driven side. The flange hub 4N of the torsionally jaw coupling as a flange type ROTEX BFN is made of steel and the driving flange 3Na is made of

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

Detail

• Thanks to the elastomer (elastomer spider) between the coupling hubs of the jaw couplings shocks respectively torsional vibrations in the drive train are damped. The high temperature-resistant spider material T-PUR® (elastomer) is available in various degrees of hardness. The torsionally flexible ROTEX couplings are used in almost every range of general machinery and plant engineering.

• Properties of torsionally flexible jaw couplings:

ROTEX shaft couplings consist of two hubs (aluminium or steel) and a spider (elastomer ring / cam ring) made of T-PUR. The different degrees of hardness of the T-PUR-spider allow to adjust the level of damping and torsional stiffness of the elastomer coupling.

• ROTEX couplings require few mounting space and thus enable easy assembly/disassembly. The numerous types provide for maximum flexibility and meet with the different mounting requirements through various types of hubs.

• Function of torsionally flexible jaw couplings:

• Jaw couplings ensure torsional vibration-damping power transmission and absorb shocks generated by machines with irregular operation.
In contrast to flexible couplings the connecting elements of which are subjected to bending and therefore to earlier wear, the flexible teeth of ROTEX® couplings (elastomers) are subjected to compressive stress only. The benefit of the elastomer coupling thus is to resist significantly higher loads.

• The elastomers become deformed with load and high speeds. Sufficient expansion space must be provided.

• All sizes of ROTEX® elastomer couplings have a maximum torsion angle of 5°. They can be mounted both horizontally and vertically.

• Material of torsionally flexible jaw couplings:

• Our elastomer material T-PUR is resistant to higher temperatures and has a considerably longer service life than common polyurethanes. From a visual point of view we marked the T-Pur material by the colours orange (92 Shore A), purple (98 Shore A) and light green (64 Shore D).

• The previous polyurethane spiders in the colours yellow, red and natural white with green marking of teeth continue to be available on request.

Size parameter KTR ROTEX AFN:

ROTEX^®AFN (No. 002) and BFN (No. 004)
Size	Component 4N max. finish bore Ød₁	Dimensions [mm]
Size	Component 4N max. finish bore Ød₁	D_H	D_F	d_H	l₁; l₂	E	E₁	s	b	l₃; l₄	^LAFN	^LBFN	TA [Nm]
24	24	55	36	27	30	18	33	2.0	14	30.5	94	86	10
28	28	65	42	30	35	20	39	2.5	15	35.5	110	100	17
38	38	80	52	38	45	24	43	3.0	18	45.5	134	124	41
42	42	95	62	46	50	26	48	3.0	20	51.0	150	138	41
48	48	105	70	51	56	28	50	3.5	21	57.0	164	152	41
55	55	120	80	60	65	30	60	4.0	22	66.0	192	176	83
65	65	135	94	68	75	35	65	4.5	26	76.0	217	201	83
75	75	160	108	80	85	40	75	5.0	30	86.5	248	229	120
90	100	200	142	100	100	45	82	5.5	34	101.5	285	265	295
100	110	225	158	113	110	50	97	6.0	38	111.5	320	295	295
110	125	255	178	127	120	55	103	6.5	42	122.0	347	321	580
125	145	290	206	147	140	60	116	7.0	46	142.0	400	370	580
140	165	320	235	165	155	65	128	7.5	50	157.5	443	409	580
160	190	370	270	190	175	75	146	9.0	57	177.5	501	463	1000
180	220	420	315	220	195	85	159	10.5	64	198.0	555	515	1000
